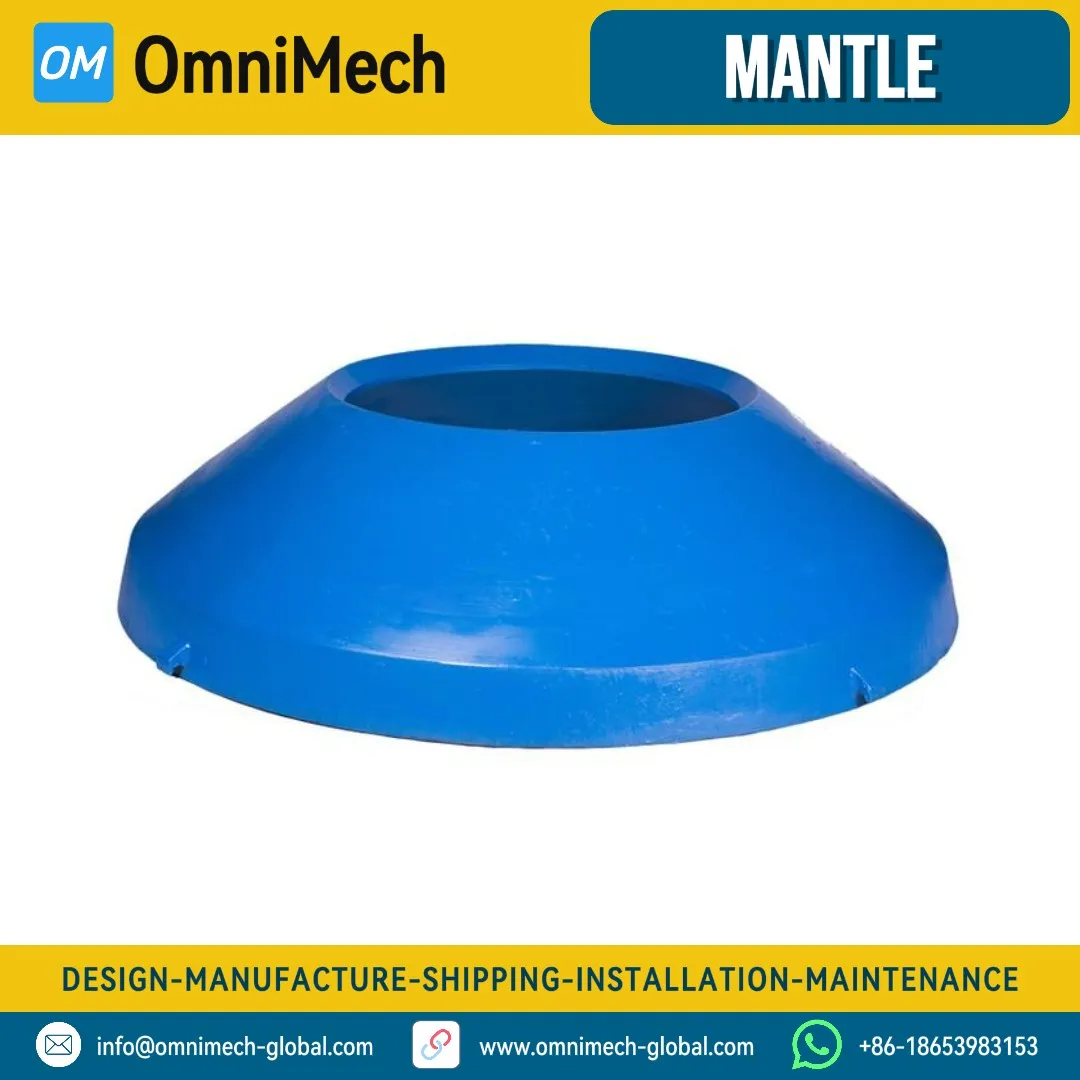

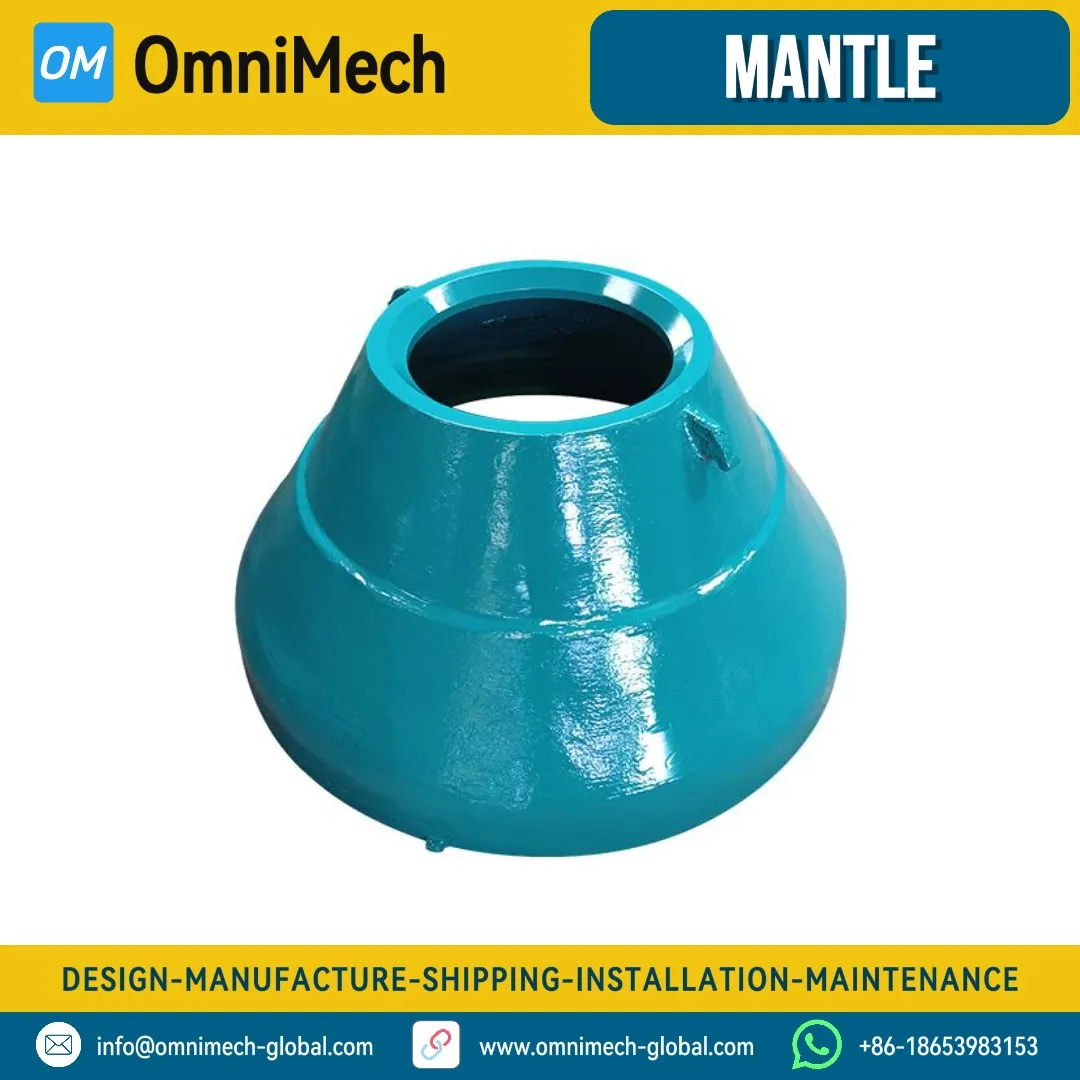

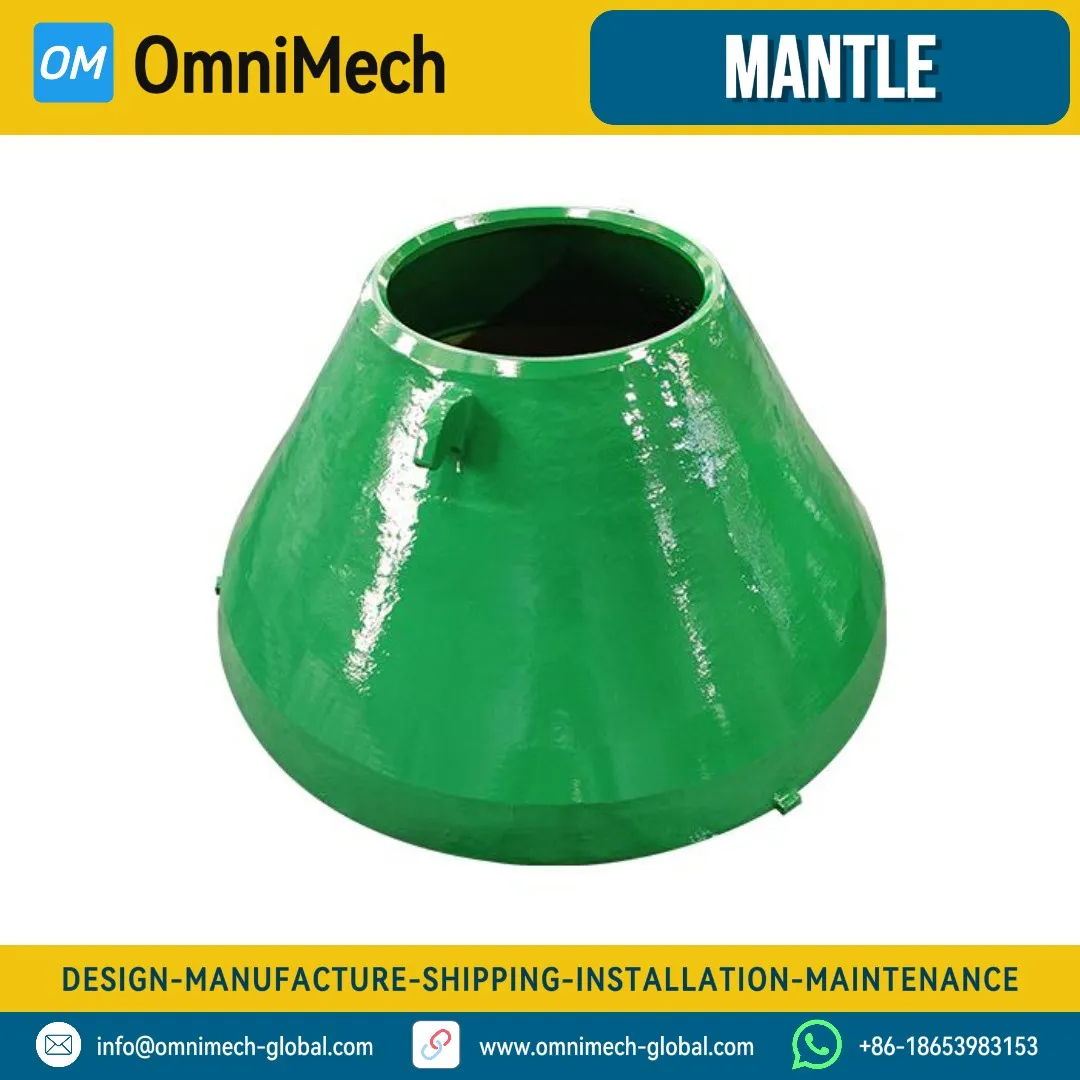

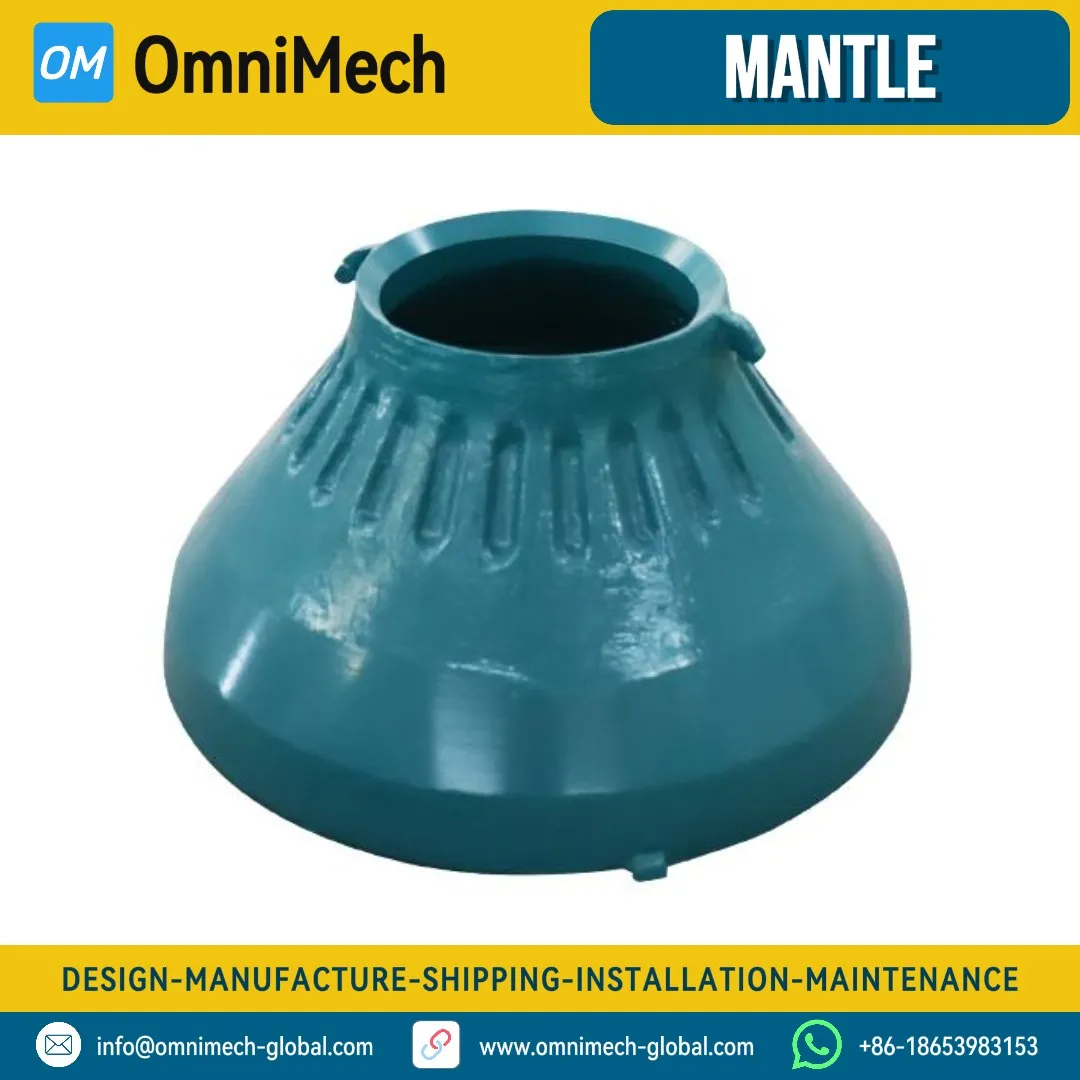

Mantle for HP Series Cone Crusher
Premium manganese mantle replacements engineered for HP series cone crushers, delivering superior wear resistance and optimized crushing cavity geometry.
Quick Specs
Applicable Models
HP100, HP200, HP300, HP400, HP500, HP3, HP4, HP5
Compatible Brands
Metso Nordberg HP Series Replacements
Customization
Custom Manganese Alloys / Special Profile Modification Supported
Hardness
HB180 - HB220 (Initial) / HB450+ (Work-hardened)
Material
Mn14Cr2 / Mn18Cr2 / Mn22Cr2 / TiC Inserts
Moq
1 Piece
Service Life
800-3200 hours
Type
Standard / Short Head
Product Description
The Mantle is the primary moving wear liner inside the HP cone crusher. Crafted from heavy-duty high-manganese steel, our mantles undergo precise heat treatment to maximize their work-hardening capabilities. Perfectly engineered to maintain optimal crushing dynamics throughout their service life.
Key Features:
- Available in standard Mn18Cr2, Mn22Cr2, and premium TiC (Titanium Carbide) alloy inserts
- Tailored configurations for both Standard and Short Head crusher frames
- CNC machined seating surfaces ensure tight fit with the head center
Applications:
- HP100, HP200, HP300, HP400, HP500, HP600
- HP3, HP4, HP5, HP6, HP900
Our Services
Packaging
All products are carefully packaged with high-quality materials to ensure safe delivery. We use wooden crates, foam padding, and waterproof wrapping for maximum protection during transportation.
After-sales Service
We provide comprehensive after-sales support including technical consultation, installation guidance, and warranty service. Our team is available 24/7 to address any concerns.
Customization Process
Send us your drawings or specifications. We'll review and provide a quote within 24 hours. Production typically takes 15-25 days with strict quality control throughout.
